A custom horse barn in Central Texas costs $35 to $85 per square foot in 2026, depending on stall count, tack room, wash bay, and attached arena. A four-stall center-aisle barn with tack room and wash bay typically runs $90,000 to $145,000. Attached covered roping arenas add $18 to $30 per square foot.
Horse barns are some of the most particular structures we build. The wrong stall layout, the wrong ventilation, or a poorly-thought-out wash bay creates headaches every single day for the next thirty years. The right barn design makes everything easier — feeding, turnout, vet visits, hauling. This guide covers what actually matters when designing a custom horse barn for Central Texas conditions.
What a Good Central Texas Horse Barn Includes
Whether you’re running quarter horses on a working ranch, boarding off-track Thoroughbreds, or housing two retired trail horses, every well-designed Central Texas barn has the same fundamentals:
- Center-aisle or shedrow layout with stalls 12×12 minimum (12×14 preferred for larger horses)
- True cross-ventilation — Texas heat kills horses; passive airflow is non-negotiable
- Concrete center aisle with broom finish for traction
- Dedicated tack room with insulated walls and climate control
- Wash bay with hot/cold water, drainage, and rubber mat flooring
- Feed room separated from stalls to control rodents
- Hay storage — either in a loft or in a separate covered area, never in the main aisle
- Overhangs of at least 8 feet on the sun-exposed sides for shade and rain protection at stall doors
Common Barn Configurations in Central Texas

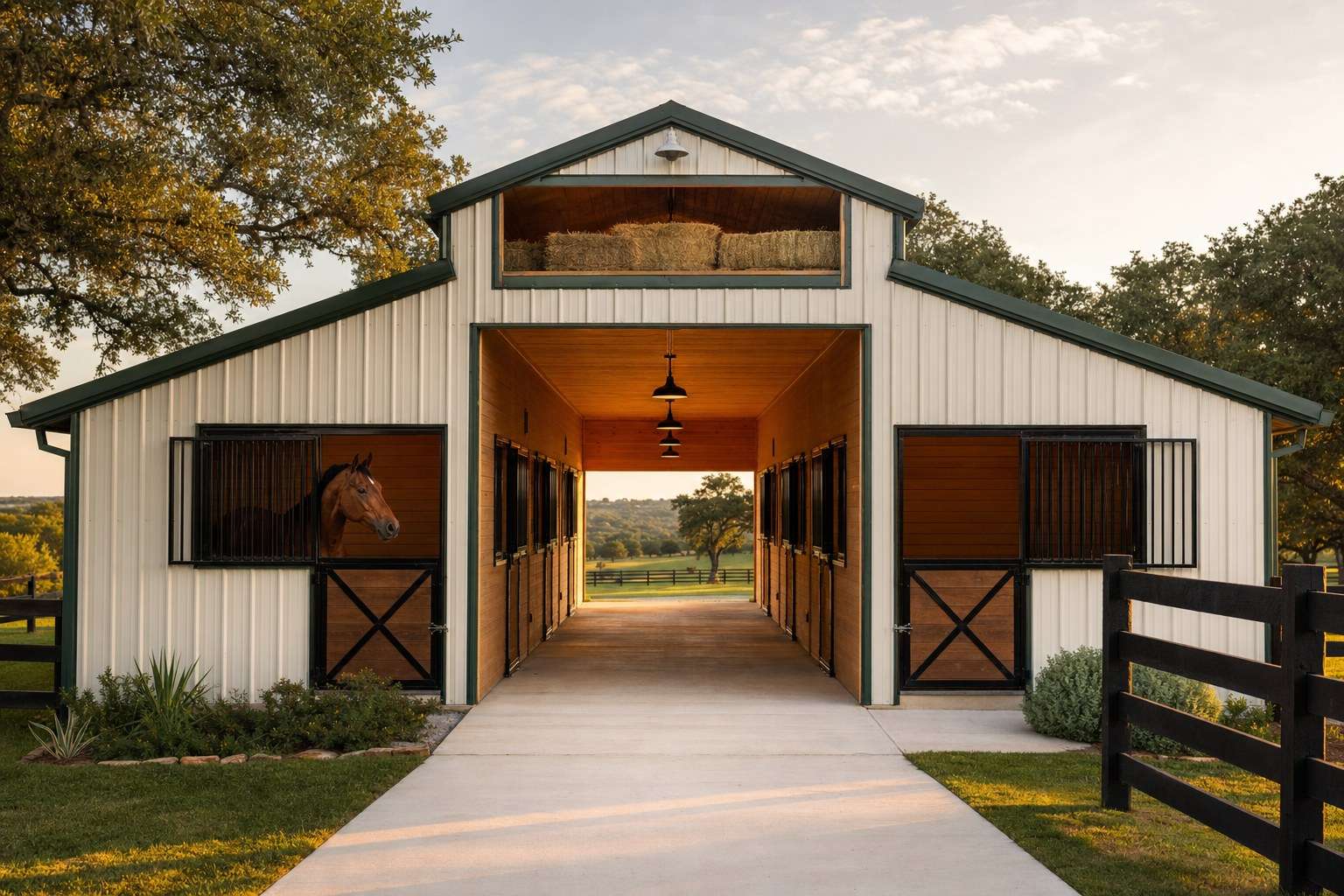

Four-stall center-aisle (most common)
40×60 footprint. Two stalls per side facing a 12-foot center aisle, with tack room, wash bay, and feed room at one end. Optional hay loft above. Best for 2–6 horses. Turnkey cost in Central Texas: $95,000 – $145,000.
Six-stall center-aisle
40×80 footprint. Three stalls per side, larger tack and wash facilities, room for a small office. Suitable for active boarding operations or larger personal herds. Cost: $135,000 – $200,000.
Shedrow barn
Single row of stalls with a covered overhang aisle. Lower cost than center-aisle, but provides less weather protection and less interior workspace. Best for mild climates or covered runs in dry pasture settings. Cost: $45,000 – $85,000 for four stalls.
Breezeway barn with attached covered arena
For ranches running their own training programs or roping operations. The barn shares a wall with a 60×100 or larger covered arena, allowing weatherproof access. Cost: $280,000 – $475,000 depending on size and finish level.
Ventilation: The Single Most Important Design Decision
Central Texas summers hit 100°F+ regularly, and humidity in the I-35 corridor compounds the heat load. Horses in poorly-ventilated barns develop respiratory issues (heaves, COPD), heat stress, and increased risk of colic. According to Texas A&M;’s Department of Animal Science, proper barn ventilation should provide 4–8 air changes per hour during summer months.
Good ventilation comes from:
- Ridge vents running the full length of the roof peak
- Gable-end vents at the highest point of each gable
- Eave vents along the long sidewalls
- Stall windows that open — not just sliding doors
- Dutch doors on stalls opening to paddocks for direct cross-airflow
- Optional ceiling fans at 14 feet for active circulation on still days
We’ve retrofitted enough poorly-ventilated barns to be emphatic about this: don’t accept a barn quote that doesn’t include explicit ventilation engineering.
Stall Design Details That Matter
- Size: 12×12 minimum for horses under 16 hands; 12×14 or 14×14 for larger breeds
- Walls: Solid kickwall to 4’6″, grilles above for visibility and ventilation
- Doors: Sliding doors are preferred — they don’t swing into the aisle
- Flooring: Rubber mats over compacted base; some owners prefer crowned clay or stone dust for joint health
- Bedding storage: Plan for shavings delivery access
- Water: Automatic waterers or hanging buckets — automatic waterers require winter freeze protection in Central Texas
Tack Room Essentials
The tack room is where leather and metal live for decades. Spec it like a finished interior space:
- Insulated walls and ceiling (closed-cell spray foam)
- Sealed concrete floor or sealed wood
- Climate control (mini-split unit, 9,000–12,000 BTU is usually plenty)
- Built-in saddle racks and bridle hooks
- Lockable door — bridles and saddles theft is real
- Dehumidifier for humid summer months along the I-35 corridor
Wash Bay
A 10×12 wash bay handles most horses comfortably. Spec:
- Sloped concrete with broom finish, draining to a 4-inch interior drain
- Hot and cold water on a swivel-arm mount
- Rubber mat flooring for slip resistance
- Tie ring on a heavy-duty backplate
- Overhead lighting and a fan
- Drainage tied to a dry well, never directly to a creek or stock pond
Roping Arenas and Riding Pens
Many Central Texas ranch builds include covered roping arenas. Typical sizes:
| Arena Size | Use Case | Cost Range (Cover Only) |
|---|---|---|
| 60×120 | Personal training, breakaway, light team roping | $95,000 – $145,000 |
| 80×180 | Full-length team roping, barrel racing | $185,000 – $260,000 |
| 100×200 | Training facility, jackpot venue | $275,000 – $385,000 |
These prices reflect the steel structure and roof only. Footing (decomposed granite, sand, or specialty arena mixes) typically adds $8,000–$35,000 depending on size and material choice. Lighting adds $4,000–$15,000.
Common Mistakes We See
- Stalls too small. Saving $200/stall on size is irrelevant when you keep the barn for thirty years.
- Insufficient overhangs. A 4-foot overhang doesn’t keep rain off stall doors. Spec 8 feet on the weather sides.
- Locating the barn in a low spot. Drainage matters more than convenience. Sites that flood are unusable.
- Skipping the wash bay. Owners always regret this within the first year.
- Cheap hardware. Stall latches, door hangers, and hinges take daily abuse. Specify professional-grade hardware from manufacturers like Priefert or Classic Equine.
Frequently Asked Questions
How much does a four-stall horse barn cost in Texas?
A turnkey four-stall center-aisle horse barn in Central Texas costs $95,000 to $145,000 in 2026, including tack room, wash bay, and concrete aisle.
Can you build a horse barn and use it with an ag exemption?
Yes. In most Central Texas counties, horse-related activities (boarding, breeding, training) qualify for agricultural valuation if they meet the county appraisal district’s “primary use” and intensity standards. Check with your county appraisal district — rules vary materially.
How long does it take to build a horse barn?
A standard four-stall center-aisle barn takes 8 to 14 weeks from groundbreaking to completion, depending on weather and finish level.
What’s the best foundation for a horse barn?
Concrete piers under the steel columns combined with a poured concrete aisle is the most common configuration. Stalls are typically over a compacted gravel/stone-dust base rather than full concrete (better for horse joints).
Should the barn be insulated?
The tack room and any office/restroom — yes, absolutely. Stalls and the main aisle — usually no. Insulating stalls reduces airflow, which is the opposite of what you want in Texas heat.
Build a Barn That Works for Decades
We’ve built horse barns across Brazos County, Limestone County, McLennan County, Bell County, and the broader Central Texas region. Every build starts with a walk of your land, a conversation about
your operation, and a clear-eyed budget conversation. Reach out to schedule a no-pressure site visit.
